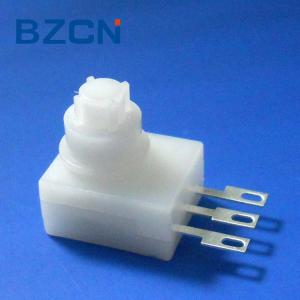

Thru - Hole Momentary Button Switch Copper Terminal With Silver Plate

Name: Thru Hole Momentary Button Switch Copper Terminal With Silver Plate
Brand: BZCN
Price: 1 USD

Brand Name : BZCN

Model Number : KAN52

Certification : SGS

Place of Origin : CHINA

MOQ : 1000 pcs

Price : Negotiable

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 1000000 pcs per week

Delivery Time : 10 days

Packaging Details : 1000 pcs per bag

Max. Current : 50 mA

Max. Voltage : 14 V

Operation type : Momentary

Material : PA66

Color : White

Pin : 3 pin

Contact Now

white momentary push button switch 2 pin 3 pin copper terminal with silver plate

Miniature Pushbutton Switches from BZ are integrated into innovative audio & visual equipment, telecommunications, industrial and automotive products by some of the world’s leading designers. The PS series are miniature switches available in momentary or latching options, as well as a broad range of style choices.

Feature:

Snap-fitting actuator accepts standard caps
Sealed against solder & cleaning processes
Thru-hole and surface mount models

Spec.

Switch Rating		50mA DC 12V
Operation Travel		0.3±0.1mm
Operation Tpye		Latching
Operation Force		250 gf
Operation Life		300,000 Cycles
Contact Resistance		≤100mΩ max
Insulation Resistance		≥100MΩ/m DC 250V
Dielectric Strength		AC 250V/m 50Hz
Operation Temperature		-30℃ to + 85℃
Operation Humidity		25-85% RH

Reference:

Thru - Hole Momentary Button Switch Copper Terminal With Silver Plate
