Momentary Operation 3.5X6 Mm Tactile Switch , Low Profile Tactile Switch

Name: Momentary Operation 35X6 Mm Tactile Switch Low Profile Tactile Switch
Brand: BZCN
Price: 1 USD

Brand Name : BZCN

Model Number : TS-B011

Certification : SGS

Place of Origin : CHINA

MOQ : 1000 pcs

Price : Negotiable

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 10000000 pcs per week

Delivery Time : 3 days

Packaging Details : 1000 pcs per bag

Cover : Plastic

sound : Low noice

Rating : 50mA

Voltage : 12v

Terminal : thru hole

Push : Vertical

Contact Now

**SMT/DIP 2 pin low profile 3.5*6 mm tactile switch momentary operation plastic push button**

3.5 mm tact switches are found in computer equipment, consumer products and instrumentation applications. this switches are available with a variety of switch heights and a choice of actuation force – and comes in a compact 6 x 3.5mm size..

Features.

Snap in type terminal, directly mounted in PCB.

Output terminal can be also used as jumper leads.

Through hole terminal with plastic cover available.

Two pin terminal Low profile

Spec.

Model No.		TS-B011
Switch Rating		50mA DC 12V
Operation Travel		0.2±0.1mm
Operation Tpye		Momentary
Operation Force		160/180/250 gf
Operation Life		300,000 Cycles
Contact Resistance		≤100mΩ max
Insulation Resistance		≥100MΩ/m DC 250V
Dielectric Strength		AC 250V/m 50Hz
Operation Temperature		-30℃ to + 85℃
Operation Humidity		25-85% RH
Solder Ability		260±5℃ for 3 seconds

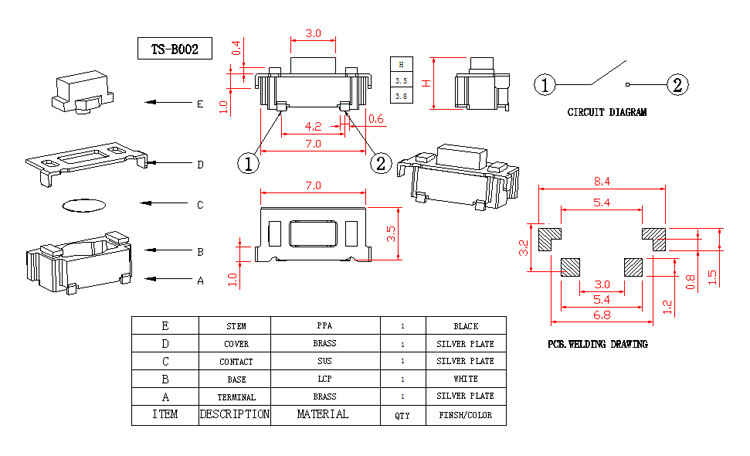

Drawing.

Momentary Operation 3.5X6 Mm Tactile Switch , Low Profile Tactile Switch
