Black House Momentary Tactile Switch 2 Pin 12V Voltage With Long Travel

Name: Black House Momentary Tactile Switch 2 Pin 12V Voltage With Long Travel
Brand: BZCN
Price: 1 USD

Wholesale Black House Momentary Tactile Switch 2 Pin 12V Voltage With Long Travel from china suppliers

Brand Name : BZCN

Model Number : TS-E013

Certification : SGS

Place of Origin : China

MOQ : 1000 pcs

Price : Negotiable

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 10000000 pcs per week

Delivery Time : 5 days

Packaging Details : 1000 pcs per bag

Press : Vertical

Feeling : Silence

Rating : 50mA

Voltage : 12V

Terminal : SMD Surface mount

Pin No. : 2 pins

Contact Now

silent push button 2 pin tactile switch momentary with long travel black house switch

surface mount tact switch offers a long travel and a quiet tactile feel with low contact resistance. You have your choice of 180 or 260 grams for the operating force. The actuator is 5.0mm long. 100,000 cycle operating life.

The applications and markets for the switch include medical equipment, audio/visual, consumer electronics, computer peripherals, instrumentation and more.

Feature.

Reflow solderable.

With earth anti ESD ground terminal.

Packing in tape reel available.

Spec.

Model No.		TS-E013
Terminal Type		SMD
Switch Rating		50mA DC 12V
Operation Travel		0.2±0.1mm
Operation Tpye		Momentary
Operation Force		160/180/250 gf
Operation Life		300,000 Cycles
Contact Resistance		≤100mΩ max
Insulation Resistance		≥100MΩ/m DC 250V
Dielectric Strength		AC 250V/m 50Hz
Operation Temperature		-30℃ to + 85℃
Operation Humidity		25-85% RH
Solder Ability		260±5℃ for 3 seconds

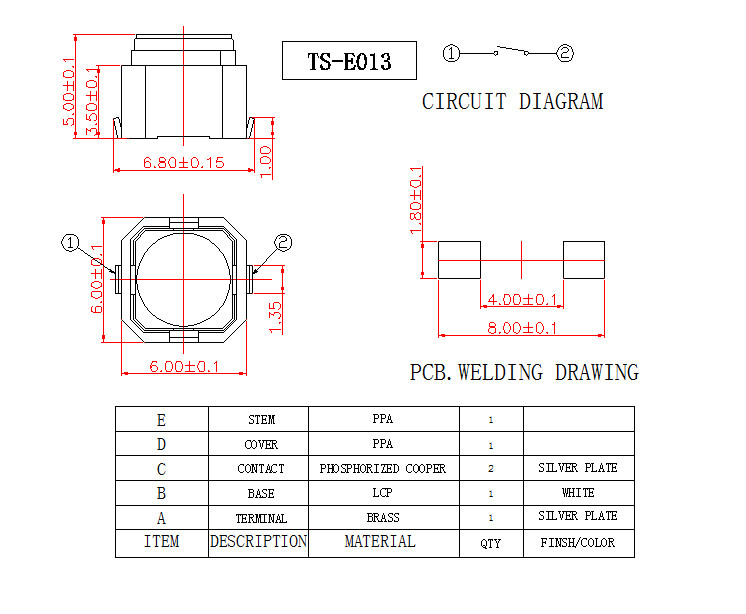

Drawing.

Black House Momentary Tactile Switch 2 Pin 12V Voltage With Long Travel
