Through Hole Terminal Silent Tactile Switch / SMD Momentary Switch DIP Terminal

Name: Through Hole Terminal Silent Tactile Switch SMD Momentary Switch DIP Terminal
Brand: BZCN
Price: 1 USD

Wholesale Through Hole Terminal Silent Tactile Switch / SMD Momentary Switch DIP Terminal from china suppliers

Brand Name : BZCN

Model Number : TS-C016

Certification : SGS

Place of Origin : China

MOQ : 1000 pcs

Price : Negotiable

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 10000000 pcs per week

Delivery Time : 5 days

Packaging Details : 1000 pcs per bag

Press : Vertical

Operation : Single pole single throw

Rating : 50mA

Voltage : 12V

Terminal : Through Hole terminal

Pin No. : 5 pins

Contact Now

Through hole terminal 4 pin push button Side press tactile switch with black button

Placing the switch such that the direction of
switch operation is vertical, and then a static
load of 10N shall be applied in the direction
of stem operation for a period of 1 min.

Spec.

Model No.		TS-C016
Terminal Type		DIP
Switch Rating		50mA DC 12V
Operation Travel		0.2±0.1mm
Operation Tpye		Momentary
Operation Force		160/180/250 gf
Operation Life		300,000 Cycles
Contact Resistance		≤100mΩ max
Insulation Resistance		≥100MΩ/m DC 250V
Dielectric Strength		AC 250V/m 50Hz
Operation Temperature		-30℃ to + 85℃
Operation Humidity		25-85% RH
Solder Ability		260±5℃ for 3 seconds

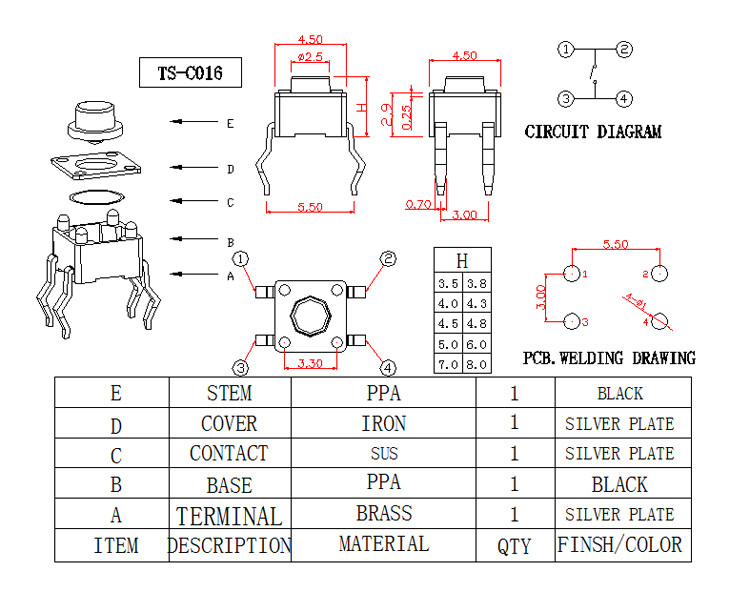

Drawing.

Through Hole Terminal Silent Tactile Switch / SMD Momentary Switch DIP Terminal
