Horizontal Push Low Profile Tactile Switch Acceptable Dustproof Momentary Operation

Brand Name : BZCN

Model Number : TS-B017

Certification : SGS

Place of Origin : China

MOQ : 1000 pcs

Price : Negotiable

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 10000000 pcs per week

Delivery Time : 3 days

Packaging Details : 1000 pcs per bag

Push : Horizontal

Material : PA66

Rating : 50mA

Voltage : 12V

Dust proof : Acceptable

Operation : Momentary

Contact Now

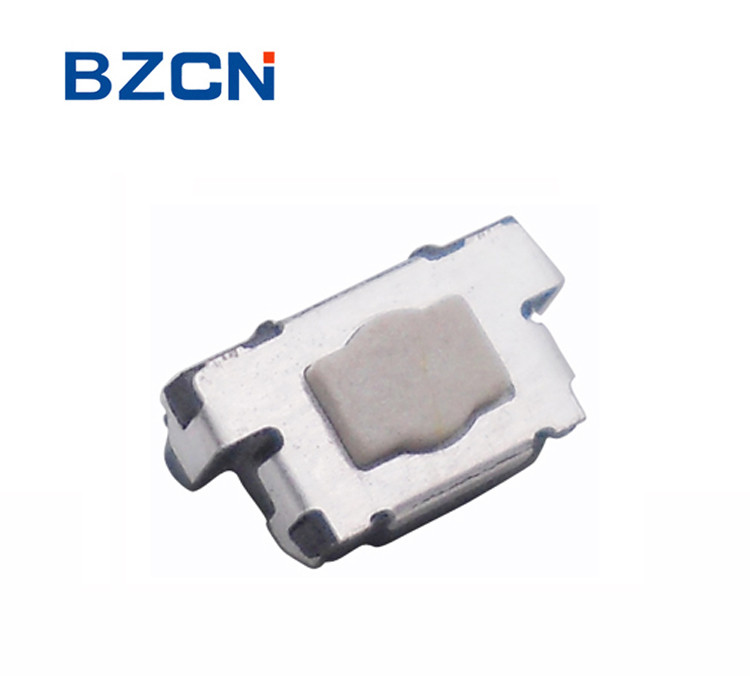

Miro momentary White push button tactile switch surface mount type terminal 2 pin

Designers working on the latest, most innovative wearable electronics, remote control and keyless entry products turn to this series microminiature SMT top actuated switch from BZ. Featuring an optional ground pin and a footprint of 3.5 x 2.6mm, is also very reliable, operating consistently for a high number of cycles.

Features.

Suitable for high density mounting.

Reflow solderable.

Horizontal type capable of operating in horizontal to PCB.

Can be packed on Tape Reel.

Ultra thin low profile

Spec.

Model No.		TS-B017
Terminal Type		SMD
Switch Rating		50mA DC 12V
Operation Travel		0.2±0.1mm
Operation Tpye		Momentary
Operation Force		160/180/250 gf
Operation Life		300,000 Cycles
Contact Resistance		≤100mΩ max
Insulation Resistance		≥100MΩ/m DC 250V
Dielectric Strength		AC 250V/m 50Hz
Operation Temperature		-30℃ to + 85℃
Operation Humidity		25-85% RH
Solder Ability		260±5℃ for 3 seconds

Drawing.

Horizontal Push Low Profile Tactile Switch Acceptable Dustproof Momentary Operation
