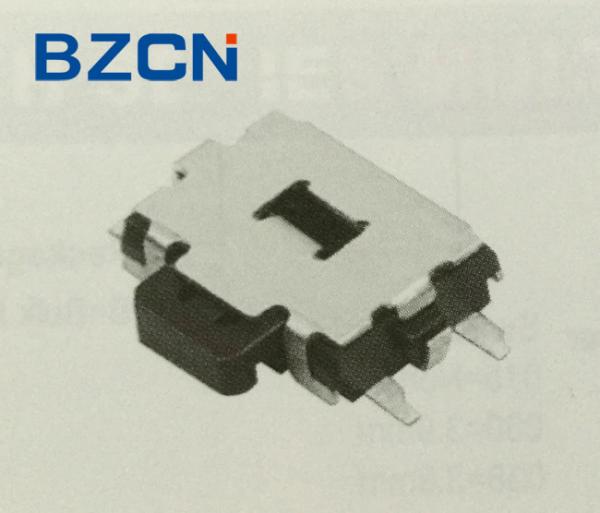

Side Press SMD Momentary Switch 50mA DC 12V Switch Rating Momentary Operation

Name: Side Press SMD Momentary Switch 50mA DC 12V Switch Rating Momentary Operation
Brand: BZCN
Price: 1 USD

Brand Name : BZCN

Model Number : TS-H004

Certification : SGS

Place of Origin : CHINA

MOQ : 1000 PCS

Price : Negotiable

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 10000000 pcs per week

Delivery Time : 5 days

Packaging Details : 1000 pcs per bag

Operation : Double action

Material : PA66

Rating : 50mA

Voltage : 12v

Direction : Horizontal

Terminal : SMD

Contact Now

**3.6 * 4.7 mm multi function double action type tact switch SMD side press switch**

Vibration Resistance:

Measurements shall be made following the test
set forth below:

(1) Range of oscillation:10 to 55Hz

(2) Amplitude,pk-to-pk:1.5 mm

(3) Cycle of sweep: 10-55-10Hz in one minute,
approx.

(4) Mode of sweep: Logarithmically sweep or
uniform sweep.

(5) Direction of oscillation:

Three mutually perpendicular directions,
including the direction of stem travel.

6) 2 hours each ,for a total of 6 hours

Spec.

Model No.		TS-H004
Terminal Type		SMD
Switch Rating		50mA DC 12V
Operation Travel		0.2±0.1mm
Operation Tpye		Momentary
Operation Force		160/180/250 gf
Operation Life		300,000 Cycles
Contact Resistance		≤100mΩ max
Insulation Resistance		≥100MΩ/m DC 250V
Dielectric Strength		AC 250V/m 50Hz
Operation Temperature		-30℃ to + 85℃
Operation Humidity		25-85% RH
Solder Ability		260±5℃ for 3 seconds

Drawing.

Side Press SMD Momentary Switch 50mA DC 12V Switch Rating Momentary Operation
