Black Miniature Push Button Switch Blue House Momentary Operation Type

Product Categories

ZHEJIANG BOZHONG ELECTRIC CO., LTD

Contact Now

Black Miniature Push Button Switch Blue House Momentary Operation Type

Name: Black Miniature Push Button Switch Blue House Momentary Operation Type
Brand: BZCN
Price: 1 USD

Brand Name : BZCN

Model Number : TS-D001

Certification : SGS

Place of Origin : CHINA

MOQ : 1000 pcs

Price : Negotiable

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 1000000 pcs per week

Delivery Time : 3 workdays

Packaging Details : 1000 pcs per bag

Case color : Blue / Orange

Button color : Black

Current rate : 0.5mA

Voltage : 12v

Type : Thru hole

Terminal : Copper

Contact Now

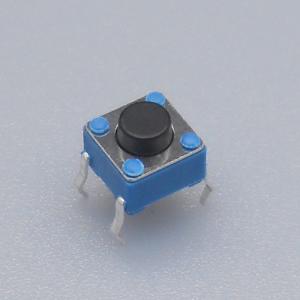

black button blue house 6 mm x 6 mm thru hole tactile switch 4 pins terminal with metal cover

when using vias, boards, and boards other than recommended, due to the effect of thermal stress changes, please fully confirm the welding conditions in advance

You can choose between gold or silver contact material and you can choose from multiple cap options for certain models.

Applications

● Switches for car audio-visual and navigation systems, steering wheels
　and other automotive equipment
● Industrial equipment and measuring instruments

Spec.

Model No.		TS-D001
Terminal Type		DIP
Switch Rating		50mA DC 12V
Operation Travel		0.2±0.1mm
Operation Tpye		Momentary
Operation Force		160/180/250 gf
Operation Life		300,000 Cycles
Contact Resistance		≤100mΩ max
Insulation Resistance		≥100MΩ/m DC 250V
Dielectric Strength		AC 250V/m 50Hz
Operation Temperature		-30℃ to + 85℃
Operation Humidity		25-85% RH
Solder Ability		260±5℃ for 3 seconds

Reference:

Black Miniature Push Button Switch Blue House Momentary Operation Type

Product Tags:

micro tactile switch

waterproof touch switch

Black Miniature Push Button Switch Blue House Momentary Operation Type Images
