Through Hole Terminal Surface Mount Tactile Switch ALPS Square Button

ZHEJIANG BOZHONG ELECTRIC CO., LTD
Contact Now

Through Hole Terminal Surface Mount Tactile Switch ALPS Square Button

Brand Name : BZCN

Model Number : TS-D005

Certification : SGS

Place of Origin : CHINA

MOQ : 1000 pcs

Price : Negotiable

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 100000 pcs per week

Delivery Time : 5 days

Packaging Details : 1000 pcs per bag

Direction : Vertical press

Button : Black

Rating : 50mA

Voltage : 12v

Shape : Square

Center push : 250 gf

Contact Now

ALPS Square button 6*6 mm through hole terminal push tact switch black button 4 pin

printed circuit board mounting holes and modes, refer to the recommended size recorded in the product drawing.

Feature.

Sharp click with tactile feed back

Multi function / dust proof / ground terminal

Reflow solderable

Miniature side press

Spec.

Model No. TS-D005
Terminal Type DIP
Switch Rating 50mA DC 12V
Operation Travel 0.2±0.1mm
Operation Tpye Momentary
Operation Force 180/250 gf
Operation Life 100,000 Cycles
Contact Resistance ≤100mΩ max
Insulation Resistance ≥100MΩ/m DC 250V
Dielectric Strength AC 250V/m 50Hz
Operation Temperature -30℃ to + 85℃
Operation Humidity 25-85% RH
Solder Ability 260±5℃ for 3 seconds

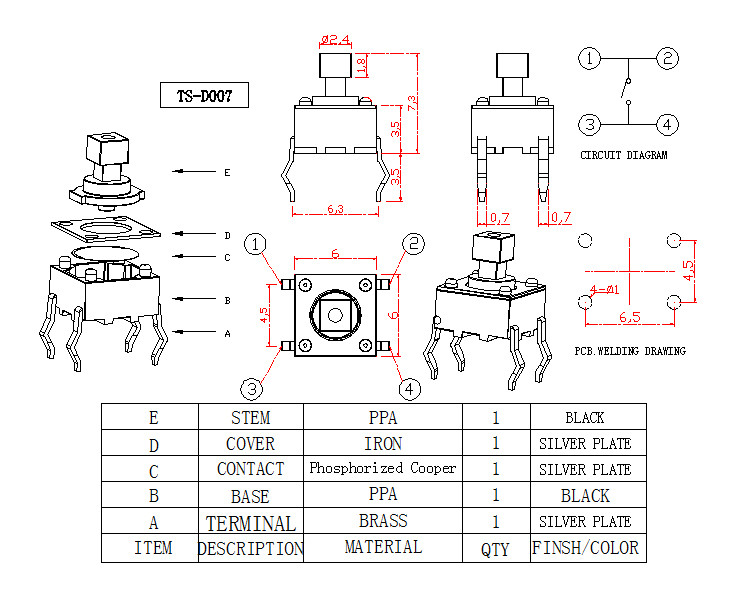

Drawing:

Through Hole Terminal Surface Mount Tactile Switch ALPS Square Button
