Square SMD Tactile Switch Yellow Dust Proof Film Momentary Operation Type

Name: Square SMD Tactile Switch Yellow Dust Proof Film Momentary Operation Type
Brand: BZCN
Price: 1 USD

Wholesale Square SMD Tactile Switch Yellow Dust Proof Film Momentary Operation Type from china suppliers

Brand Name : BZCN

Model Number : TS-A005

Certification : SGS

Place of Origin : CHINA

MOQ : 1000 pcs

Price : Negotiable

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 100000 pcs per week

Delivery Time : 5 days

Packaging Details : 1000 pcs per bag

Direction : Direct press

Case : Black PA66

Rating : 50mA

Voltage : 12v

Travel : 0.15 mm

Center push : 180 gf

Contact Now

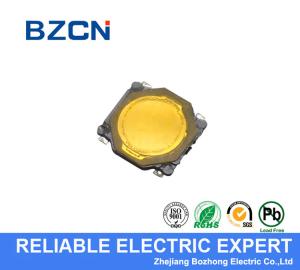

**Ultra thin square SMD momentary tact switch 3.7*3.7 mm with yellow dust proof film**

Tact switch is surface mount and ultraminiature in size.

• Up to 100,000 cycles life expectancy
• 100gf and 160gf options
• Surface mount design

With the small footprint and low profile, and the SMT design, it can be used for many small applications, including wearable technology, medical devices, audio/visual and other products where space is at a premium.

Feature.

Sharp click with tactile feed back

Multi function / dust proof / ground terminal

Surface mount on PC Board

Ultra thin

Spec.

Model No.		TS-A005
Terminal Type		SMD
Switch Rating		50mA DC 12V
Operation Travel		0.2±0.1mm
Operation Tpye		Momentary
Operation Force		180/250 gf
Operation Life		100,000 Cycles
Contact Resistance		≤100mΩ max
Insulation Resistance		≥100MΩ/m DC 250V
Dielectric Strength		AC 250V/m 50Hz
Operation Temperature		-30℃ to + 85℃
Operation Humidity		25-85% RH
Solder Ability		260±5℃ for 3 seconds

Drawing:

Square SMD Tactile Switch Yellow Dust Proof Film Momentary Operation Type
