6x6 Mm Waterproof Touch Switch DIP Long Travel Tact Switch With Rubber Button

Name: 6x6 Mm Waterproof Touch Switch DIP Long Travel Tact Switch With Rubber Button
Brand: BZCN
Price: 1 USD

Brand Name : BZCN

Model Number : TS-E003

Certification : SGS

Place of Origin : CHINA

MOQ : 1000 pcs

Price : Negotiable

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 100000 pcs per week

Delivery Time : 5 days

Packaging Details : 1000 pcs per bag

Direction : short travel

Cover : SUS

Rating : 50mA

Voltage : 12v

Travel : 0.25 mm

Center push : 180 gf

Contact Now

6x6 mm DIP long travel tact switch with rubber button and water proof touch switch

• Process sealed tactile switch
• 130,160, 300, and 500 gf options
• Through hole design
• Silver or gold plated contacts

Our tactile switch series work well in many applications, including computers/servers, peripherals, audio/visual, consumer electronics, test equipment, medical devices and more.

Feature.

Sharp click with tactile feed back

Multi function / dust proof / ground terminal

Through hole terminal snap in type

Spec.

Model No.		TS-E003
Terminal Type		SMD
Switch Rating		50mA DC 12V
Operation Travel		0.2±0.1mm
Operation Tpye		Momentary
Operation Force		180/250 gf
Operation Life		100,000 Cycles
Contact Resistance		≤100mΩ max
Insulation Resistance		≥100MΩ/m DC 250V
Dielectric Strength		AC 250V/m 50Hz
Operation Temperature		-30℃ to + 85℃
Operation Humidity		25-85% RH
Solder Ability		260±5℃ for 3 seconds

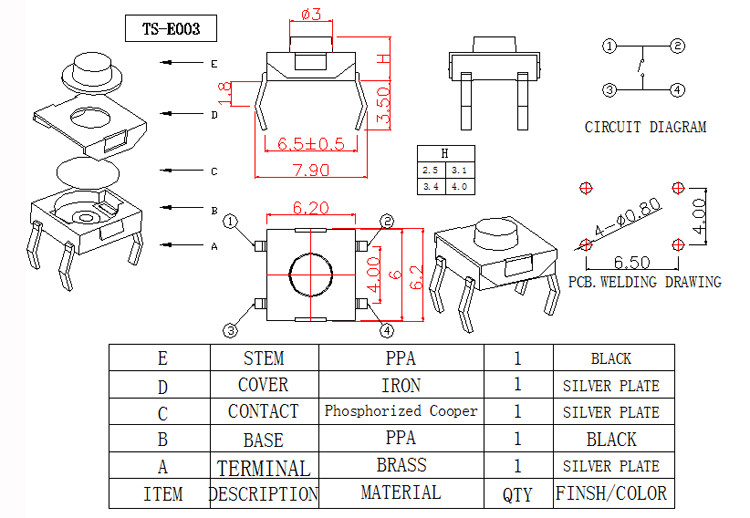

Drawing:

6x6 Mm Waterproof Touch Switch DIP Long Travel Tact Switch With Rubber Button
